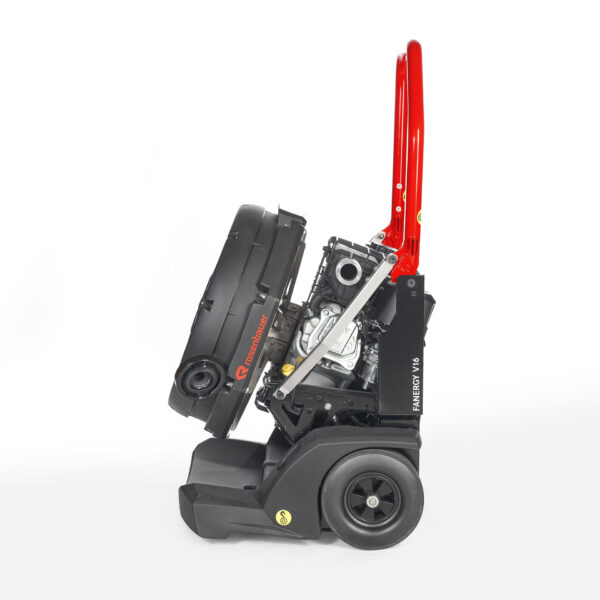

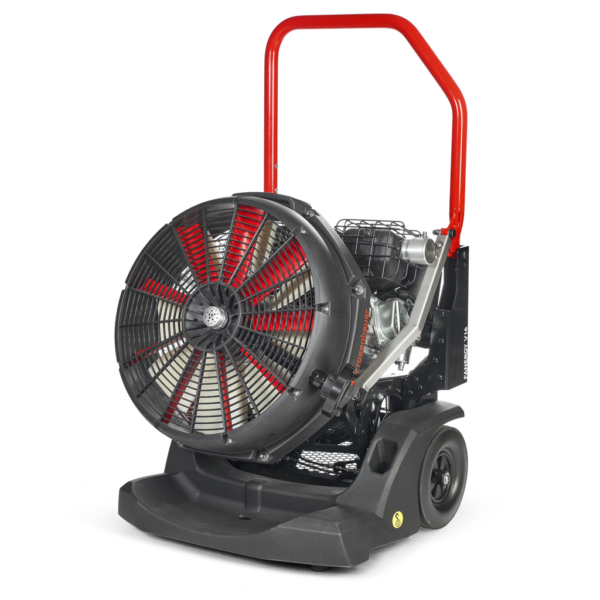

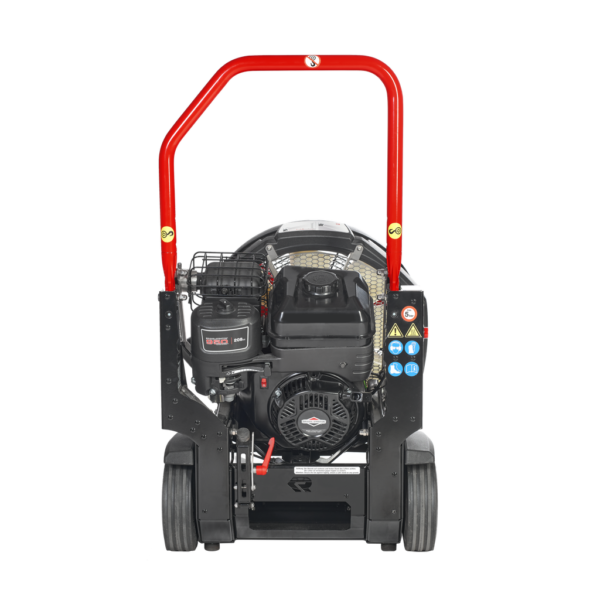

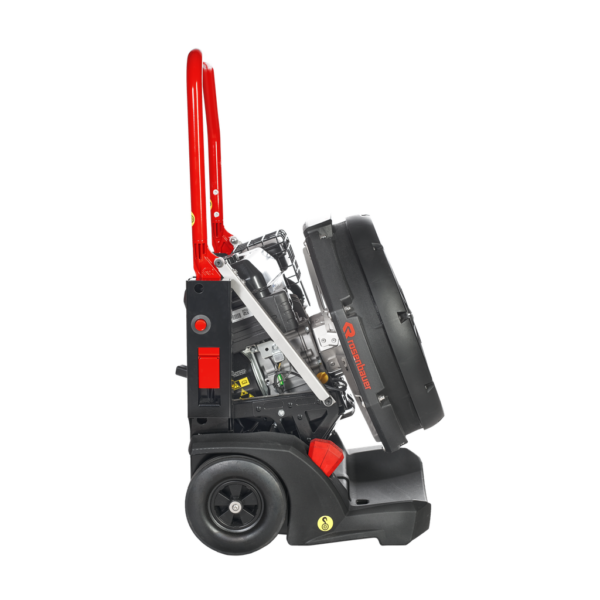

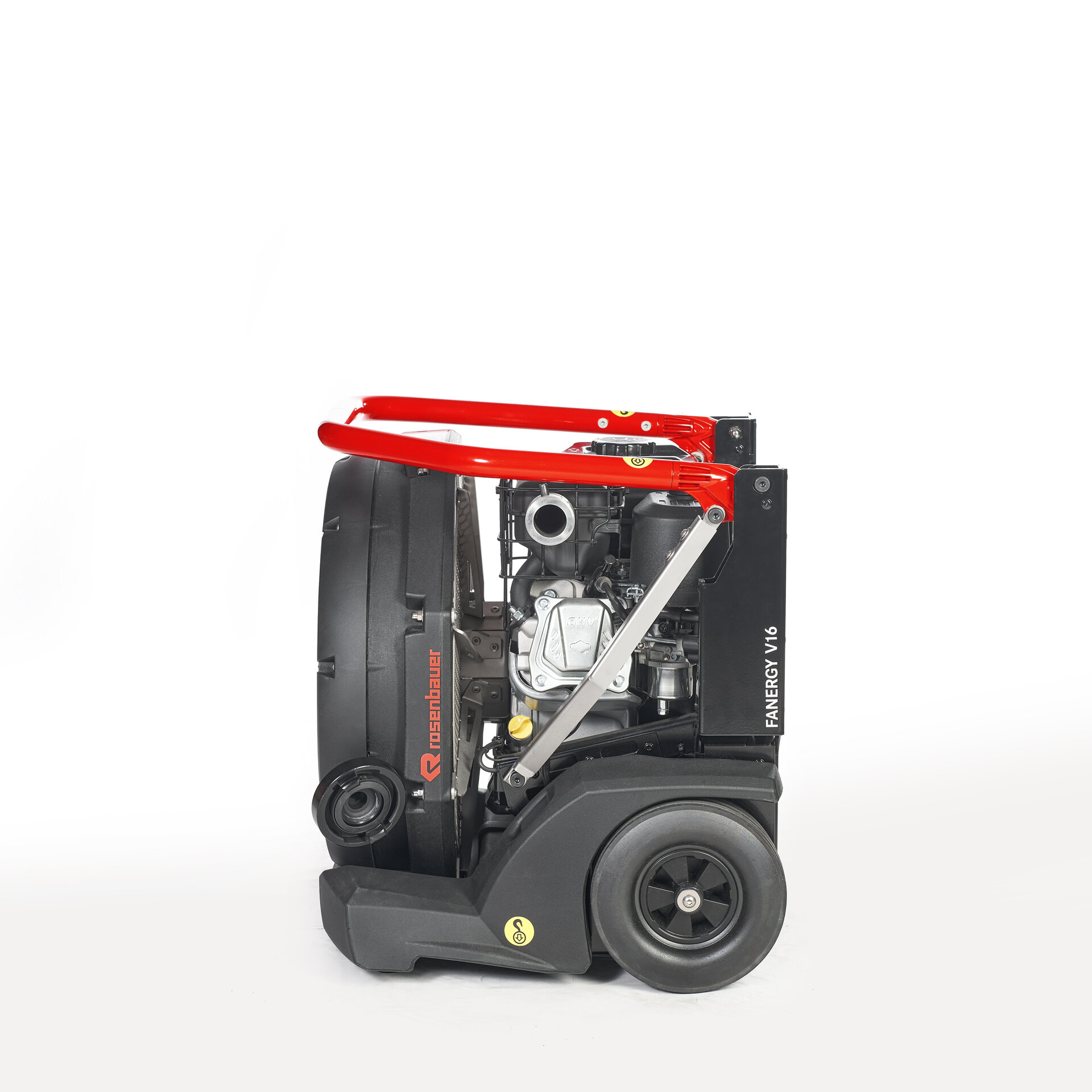

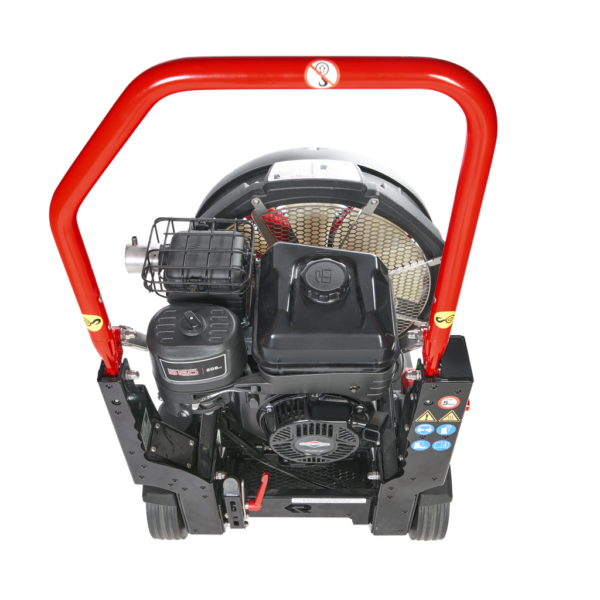

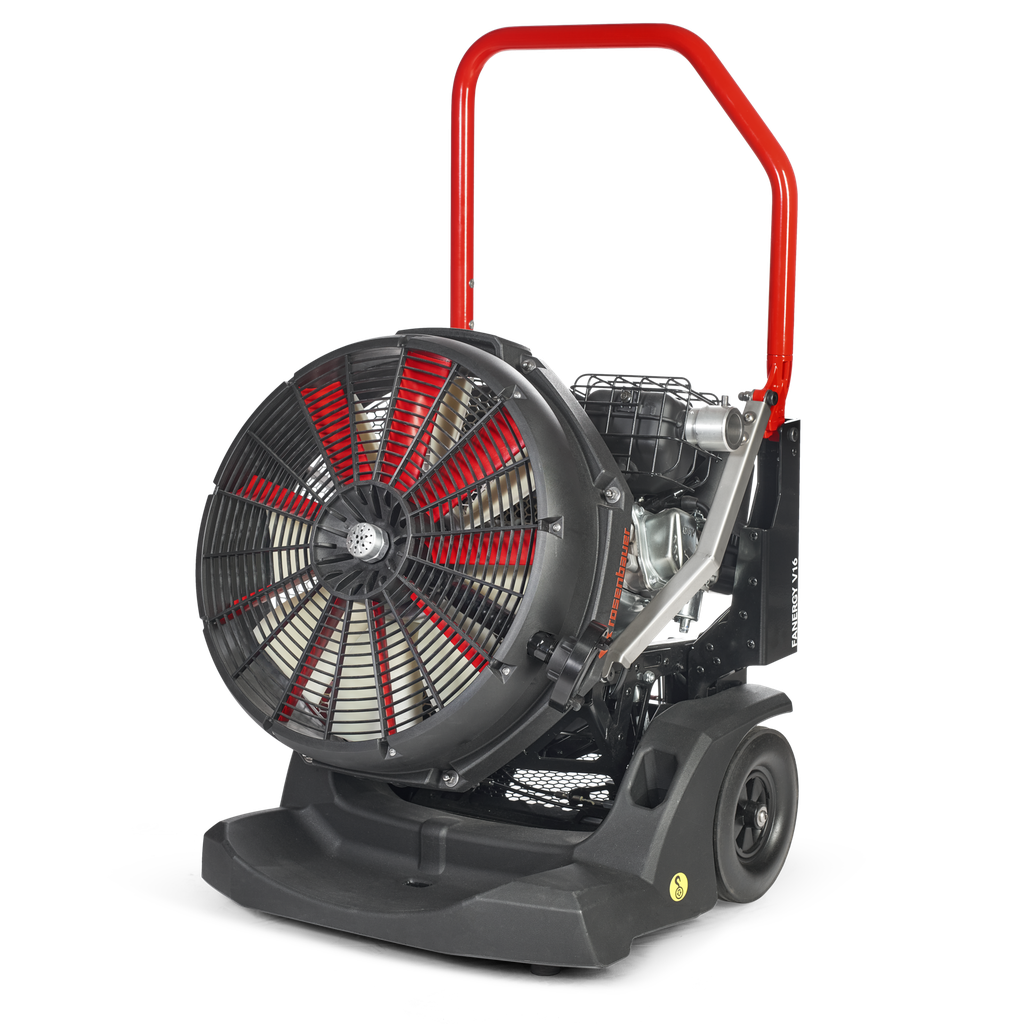

FANERGY V16 with B&S engine, water spray device and lighting package

Powerful, reliable and compact:

• Rapid deployment with one easy movement
• Thanks to targeted and powerful airflow, smoke is quickly removed from the scene
• Its unique function ensures optimum performance
• Extremely compact design, minimal footprint in vehicle, also ideally suited for retrofitting
• Maximum inclination adjustment (-20° up to +20°)
• 2 wedges as standard
• Storage compartment for the optional foam net
• Large, smooth-operating wheels
• Robust adjustment mechanism
• Stable vibration dampers
• Integrated water spray device
• Lighting package

Safe ventilation in the most difficult conditions:
Thanks to the high performance airflow and the extremely large adjustment range, from -20° to +20°, better ventilation is possible even with higher level doors, external entrance steps, basement stairs etc.
The direct drive supplies an extremely powerful airflow: less noise, less wear parts.

Integrated water spray device:
Can be used for generating a water spray (200 l at 5 bar).
Space saving and rapid deployment for lightfoam production. Can be used as a lightfoam generator when fitted with foam net and foam proportioner.

Lighting package:
Better operability of the controls and safe use in the dark.

Technical data:
Drive engine / motor: Briggs & Stratton 4.8 kW (6.5 PS)
Air outlet diameter: approx. 16″/400 mm
Airflow according to ISO 5801: 5981 m³/h
Thrust according to ISO 13350: 27.5 N
Acoustic power level LWA: 115.7 dB(A) at 100 % rotational frequency
Fuel: Lead free gasoline > 91 Octane
Tank capacity: approx. 3 l
Running time with 1 tank filling: approx. 110 min at full load
Dimensions (W x D x H): 545 x 490 x 545 mm
Weight: 47 kg
